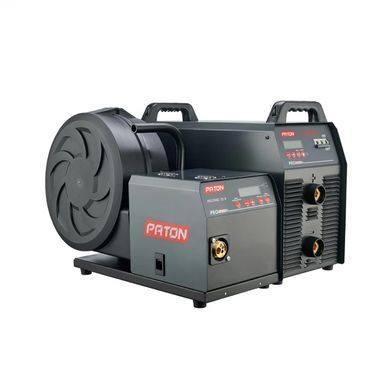

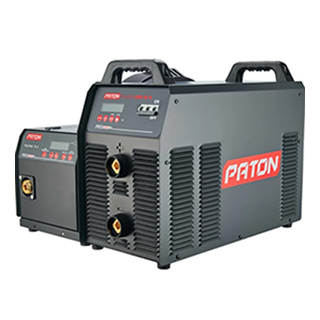

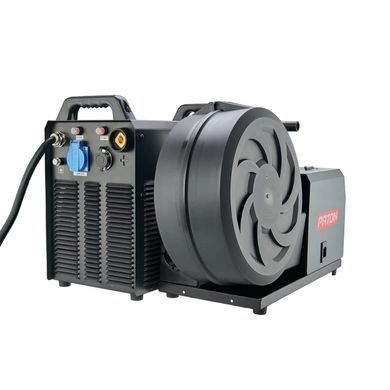

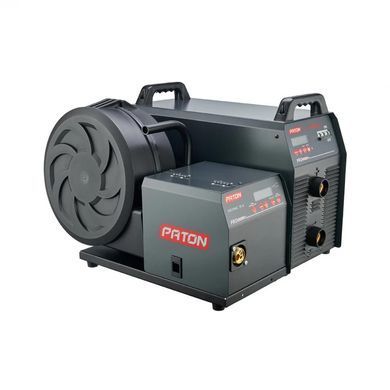

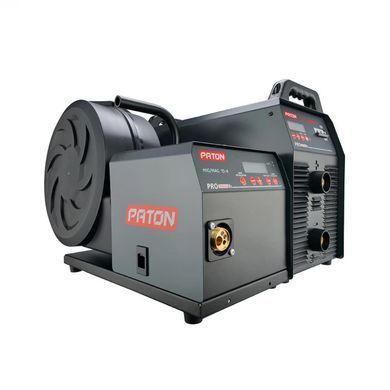

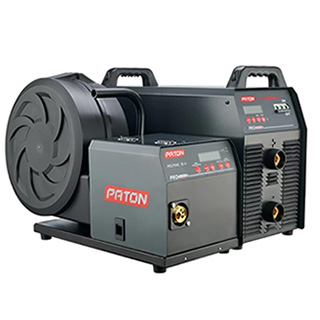

Welding semi-automatic inverter Paton ProMIG-630-15-4-400V 630 А 1.6-8 mm (1024063012)
Welding semi-automatic inverter Paton ProMIG-630-15-4-400V 630 А 1.6-8 mm (1024063012) is a professional machine designed for semi-automatic welding ("MIG/MAG"), manual arc welding ("MMA"), and argon ("TIG") welding with direct current in protective gases and gas mixtures. The ProMIG-630-15-4-400V features a fully digital control system, providing multifunctionality and extensive options for precise welding mode settings. The increased duty cycle at a nominal current of up to 630 A allows working with any electrodes ranging from 1.6 mm to 8 mm, as well as performing semi-automatic welding with solid wire diameters from 0.6 mm to 2 mm. Thanks to the dual-body design, the power source can easily be separated from the wire feed unit, significantly increasing mobility and convenience when working in MMA and TIG modes. The ProMIG-630-15-4-400V is equipped with a high-quality 4-roller metal wire feed mechanism with a powerful sealed motor, and the universal KZ-2 "EURO" type connector enables the connection of welding torches from a wide range of manufacturers. The robust bracket for welding wire allows the installation of spools weighing up to 15 kg. The ProMIG-630-15-4-400V, combining high power and performance, is lightweight and compact in size. Thanks to its LCD screens, the device is easy to configure for any task. The device is supplied with high-quality accessories from ABICOR BINZEL, allowing immediate use in MIG/MAG and MMA modes. For full operation of the machines, it is necessary to purchase a set of communication cables and the appropriate welding torch separately!
Features:
|
Housing This model features a dual-body design with a completely separate wire feed unit, enhancing mobility and convenience when working in MMA and TIG modes. Dimensions: 510х235х410 mm. Weight: 38.4 kg. |
|

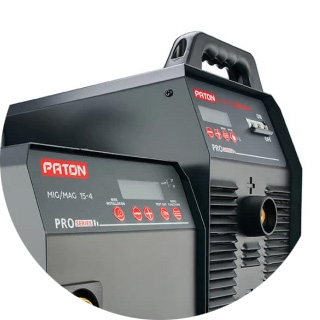

Сontrol The ProMIG-630-15-4-400V features a fully digital control system, providing multifunctionality and extensive options for precise welding mode adjustments. Thanks to the dual-body design, the power source can easily be separated from the wire feed unit, significantly increasing mobility and convenience when working in MMA and TIG modes. |
|
Mechanism wire feed and a spool bracket The ProMIG-630-15-2-400V is equipped with a high-quality 4-roller metal wire feed mechanism (wire diameter from 0.6 mm to 2 mm) with a powerful sealed motor. The wire feed speed adjustment range is 2-20 m/min. The powerful welding wire bracket allows for the installation of spools weighing up to 15 kg. |
|
Universal KZ-2 connector The universal KZ-2 "EURO" type connector allows for the connection of welding torches from a wide range of manufacturers. |
|
Power Nominal power consumption: 27800-32500 W. Maximum power consumption: 40100 W. |
|
Reliability of the product All electronics in the device are coated with two layers of high-quality varnish, ensuring the reliability of the product throughout its entire service life. |
|
Current adjustment Welding current adjustment ranges from 18 A to 630 A. |
|
Electrodes Any electrodes with diameters ranging from 1.6 mm to 8 mm can be used. |
|
Welding modes The device is designed for semi-automatic welding ("MIG/MAG"), manual arc welding ("MMA"), and argon welding ("TIG") with direct current using protective gases and gas mixtures. |
|
Power connectors The housings of the power connectors are made of heat-resistant material. |
|
Function "ANTI-STICK" During the initial arc strike, the electrode may stick or adhere to the workpiece, which can lead to overheating and excessive heat, potentially damaging the electrode. If the electrode sticks to the workpiece, the device reduces the welding current within 0.6 to 0.8 seconds. This makes it easier for the welder to detach the electrode from the workpiece without the risk of eye injury from an accidental arc strike. Once the electrode is detached from the workpiece, the welding process can continue uninterrupted. |
|
Function "HOT-START" The "HOT-START" function improves ignition even when using electrodes that are difficult to ignite. It also helps to achieve better penetration of the base material during ignition, resulting in fewer cold welds. Additionally, it prevents the formation of slag inclusions. It features manual adjustment. |
|
Function "ARC-FORCE" The "ARC-FORCE" function enhances the stability of welding on a short arc, improves the transfer of metal droplets into the weld pool, improves arc ignition, and reduces the likelihood of electrode sticking. It features manual adjustment. |
Complete set:
- welding semi-automatic inverter;
- wire feed mechanism Feeder 15-4 500 PRO;
- copper cable (5 m) with ground clamp Abicor Binzel;
- sets of rollers for 4 diameters of steel wire and 2 diameters of aluminum wire;
- quick-release gas hose connector;
- instruction;
- warranty card;
- PATON™ branded corrugated cardboard box.
6 reasons to buy welding semi-automatic inverter Paton ProMIG-630-15-4-400V 630 А 1.6-8 mm (1024063012)
- Powerful welding semi-automatic inverter.
- For semi-automatic welding ("MIG/MAG"), manual arc welding ("MMA"), and argon welding ("TIG") with direct current using protective gases and gas mixtures.
- Suitable for welding with solid wire diameters of 0.6-2 mm.
- Compatible with any electrodes ranging from 1.6 mm to 8 mm in diameter.
- Dual-body design.
