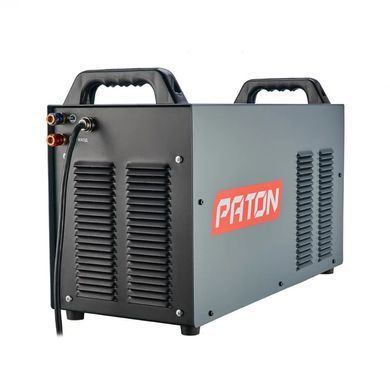

Welding kit Paton ProMIG-500-15-4-400V WK 500 А 1.6-8 mm (1024050015)
Welding kit Paton ProMIG-500-15-4-400V WK 500 А 1.6-8 mm (1024050015) is a comprehensive solution for working with the Paton ProMIG-500-15-4 W semi-automatic welder. The kit includes the welding semi-automatic inverter Paton ProMIG-500-15-4-400V W, the Paton Cooler-7-400V cooling unit, and the Paton 360 cart.
For the full operation of the equipment, it is necessary to purchase a set of communication cables and a compatible welding torch!
Welding semi-automatic inverter Paton ProMIG-500-15-4-400V W is a professional machine designed for semi-automatic welding ("MIG/MAG"), manual arc welding ("MMA"), and argon ("TIG") welding with direct current in protective gases and gas mixtures. The ProMIG-500-15-4-400V W features a fully digital control system, providing multifunctionality and extensive options for precise welding mode settings. The increased duty cycle at a nominal current of up to 500 A allows working with any electrodes ranging from 1.6 mm to 8 mm, as well as performing semi-automatic welding with solid wire diameters from 0.6 mm to 1.6 mm. Thanks to the dual-body design, the power source can easily be separated from the wire feed unit, significantly increasing mobility and convenience when working in MMA and TIG modes. Equipped with two additional connectors for connecting a liquid cooling hose and a power contact cable. The ProMIG-500-15-4-400V W is equipped with a high-quality 4-roller metal wire feed mechanism with a powerful sealed motor, and the universal KZ-2 "EURO" type connector enables the connection of welding torches from a wide range of manufacturers. The robust bracket for welding wire allows the installation of spools weighing up to 15 kg. The ProMIG-500-15-4-400V W, combining high power and performance, is lightweight and compact in size. Thanks to its LCD screens, the device is easy to configure for any task. The device is supplied with high-quality accessories from ABICOR BINZEL, allowing immediate use in MIG/MAG and MMA modes. For full operation of the machines, it is necessary to purchase a set of communication cables and the appropriate welding torch separately!
Features:
|

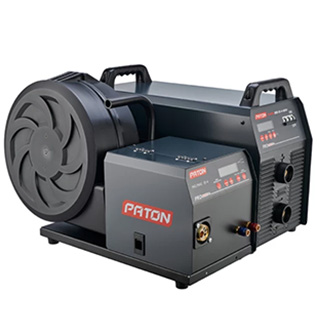

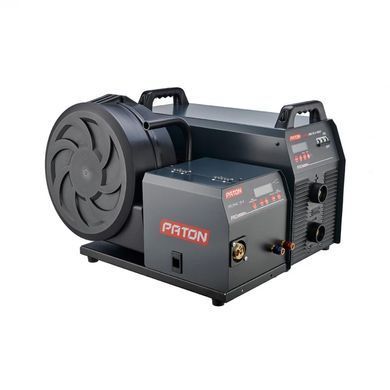

Housing This model features a dual-body design with a completely separate wire feed unit, enhancing mobility and convenience when working in MMA and TIG modes. Dimensions: 510х180х385 mm. Weight: 36.7 kg. Protection class: IP23. |
|
Сontrol The ProMIG-500-15-4-400V W features a fully digital control system, providing multifunctionality and extensive options for precise welding mode adjustments. Thanks to the dual-body design, the power source can easily be separated from the wire feed unit, significantly increasing mobility and convenience when working in MMA and TIG modes. |
|

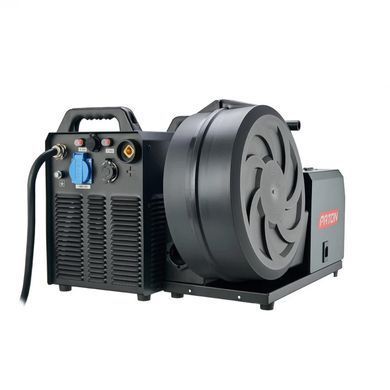

Mechanism wire feed and a spool bracket The ProMIG-500-15-2-400V W is equipped with a high-quality 4-roller metal wire feed mechanism (wire diameter from 0.6 mm to 1.6 mm) with a powerful sealed motor. The wire feed speed adjustment range is 2-20 m/min. The powerful welding wire bracket allows for the installation of spools weighing up to 15 kg. |
|
Universal KZ-2 connector The universal KZ-2 "EURO" type connector allows for the connection of welding torches from a wide range of manufacturers. |
|
Power Nominal power consumption: 19900-23600 W. Maximum power consumption: 29000 W. |
|
Reliability of the product All electronics in the device are coated with two layers of high-quality varnish, ensuring the reliability of the product throughout its entire service life. |
|
Current adjustment Welding current adjustment ranges from 16 A to 500 A. |
|
Electrodes Any electrodes with diameters ranging from 1.6 mm to 8 mm can be used. |
|
Welding modes The device is designed for semi-automatic welding ("MIG/MAG"), manual arc welding ("MMA"), and argon welding ("TIG") with direct current using protective gases and gas mixtures. |
|
Power connectors The housings of the power connectors are made of heat-resistant material. |
|

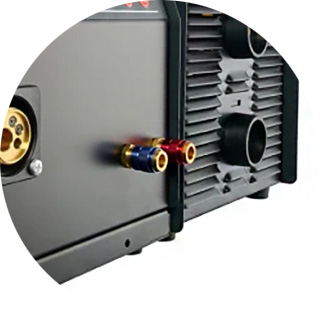

Connectors for the hose and cable The ProMIG-500-15-4-400V W is equipped with two connectors for connecting a liquid cooling hose and a power contact cable. |
|
Function "ANTI-STICK" During the initial arc strike, the electrode may stick or adhere to the workpiece, which can lead to overheating and excessive heat, potentially damaging the electrode. If the electrode sticks to the workpiece, the device reduces the welding current within 0.6 to 0.8 seconds. This makes it easier for the welder to detach the electrode from the workpiece without the risk of eye injury from an accidental arc strike. Once the electrode is detached from the workpiece, the welding process can continue uninterrupted. |
|
Function "HOT-START" The "HOT-START" function improves ignition even when using electrodes that are difficult to ignite. It also helps to achieve better penetration of the base material during ignition, resulting in fewer cold welds. Additionally, it prevents the formation of slag inclusions. It features manual adjustment. |
|
Function "ARC-FORCE" The "ARC-FORCE" function enhances the stability of welding on a short arc, improves the transfer of metal droplets into the weld pool, improves arc ignition, and reduces the likelihood of electrode sticking. It features manual adjustment. |

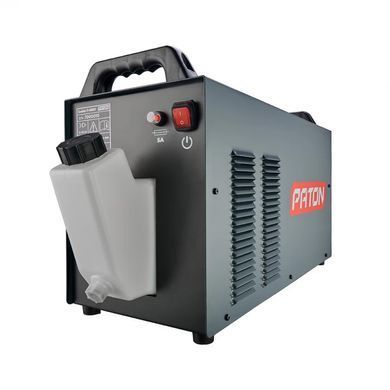

The Paton Cooler-7-400V is designed to provide effective cooling for accessories (torches, plasma cutters) when working with welding machines and air plasma cutting devices. The unit features a liquid flow sensor that protects the torch from burning out in case of liquid circulation interruption. The Cooler-7 model ensures reliable cooling for torches during high-current welding operations (> 300 A for semi-automatic welding and > 140 A for TIG welding) and is an essential component of welding equipment operating under these conditions. The Cooler-7 can hold up to 7 liters of coolant and ensures circulation in a closed system with high power (liquid supply up to 10 meters) and efficiency (up to 6.5 liters per minute).
Features:
|
Functionality The Cooler-7-400V is designed for effective cooling of accessories such as welding torches and plasma torches during operation with welding machines and air-plasma cutting devices. It ensures stable cooling of torches at high welding currents (from 300 A for semi-automatic welding and from 140 A for TIG welding), making it an essential component of equipment for such conditions. |
|
Dimensions Dimensions: 700x234x367 mm. Weight: 17 kg. Protection class: IP21. |
|
Coolant reservoir The Cooler-7-400V features a 7-liter coolant reservoir, delivering coolant with high performance (up to 6.5 l/min) and power (pumping to a height of up to 10 m) in a closed system. The filling neck on the front panel ensures convenience when used as part of a mobile welding station on a cart. |

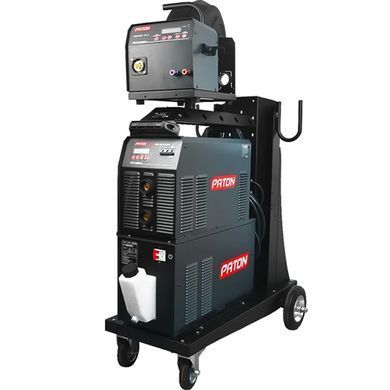

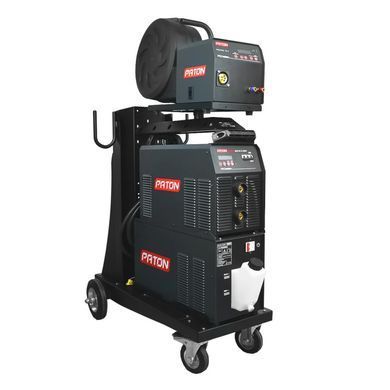

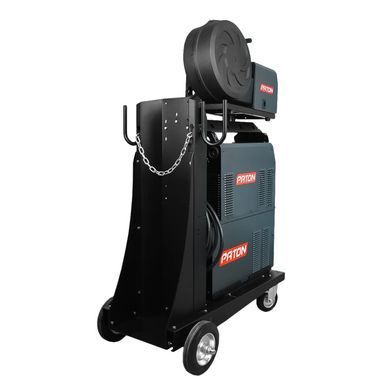

The Paton 360 cart is designed for equipping a mobile welding station and is compatible with PATON™ ProMIG-500-15-4-400V W and MAXwire, as well as PATON™ ProMIG-630-15-4-400V W and MAXwire welding equipment. Its unique design and high-quality materials ensure the cart's strength and reliability. The top shelf features a bracket that allows for the installation of a wire feed unit, providing 360° rotation. With maximum loading capacity, there is space to accommodate an independent cooling unit, a welding power source, and a welding wire feed unit. Additionally, the cart includes a dedicated space for a protective gas cylinder.
Features:
|
Functionality Designed to create a mobile welding station and is compatible with PATON™ ProMIG-500-15-4-400V W and MAXwire, as well as PATON™ ProMIG-630-15-4-400V W and MAXwire welding equipment. |
|
Material Made of 2 mm thick steel. Dimensions: 908х570х1066 mm. Weight: 33.5 kg. |
|
Design The top shelf features a bracket that allows for the installation of a wire feed unit, providing 360° rotation. With maximum loading capacity, it can accommodate an independent cooling unit, a welding power source, and a welding wire feed unit, as well as a separate compartment for a protective gas cylinder. This design makes the cart highly functional and convenient to use. |
Complete set:
- welding semi-automatic inverter;
- copper cable (5 m) with ground clamp Abicor Binzel;
- sets of rollers for 4 diameters of steel wire and 2 diameters of aluminum wire;
- quick-release gas hose connector;
- wire feeding device;
- autonomous cooling unit Cooler-7;
- cart Paton 360;
- user manual for ProMIG-500-15-4-400V;
- user manual for Cooler-7;
- warranty card;
- PATON™ branded corrugated cardboard box.
6 reasons to buy welding kit Paton ProMIG-500-15-4-400V WK 500 А 1.6-8 mm (1024050015)
- Powerful welding kit.
- For semi-automatic welding ("MIG/MAG"), manual arc welding ("MMA"), and argon welding ("TIG") with direct current using protective gases and gas mixtures.
- Suitable for welding with solid wire diameters of 0.6-1.6 mm and any electrodes ranging from 1.6 mm to 8 mm in diameter.
- The set includes a welding inverter semi-automatic machine and an autonomous cooling unit.
- Equipped with a metal cart for easy mobility.
