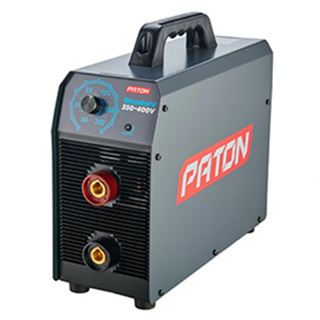

Welding inverter Paton Standard-350-400V 350 А 2-6 mm (1013035012)
Welding inverter Paton Standard-350-400V 350 А 2-6 mm (1013035012) is designed for manual arc welding (MMA) with direct current up to 350 A. This model is aimed at use in the construction and industrial sectors, including medium and large-scale construction, metal structure manufacturing, large workshops, automotive repair facilities, and more. The inverter ensures operation with various electrode types, including refractory ones. It features voltage fluctuation protection and a stabilization system, allowing it to function effectively even with significant long-term voltage fluctuations in the range of 320 V to 440 V. The device is highly reliable in dusty production environments, as all electronics are coated with two layers of high-quality varnish, ensuring long-lasting operation. Smooth welding current adjustment and improved arc stability contribute to high welding quality.
Features:
|

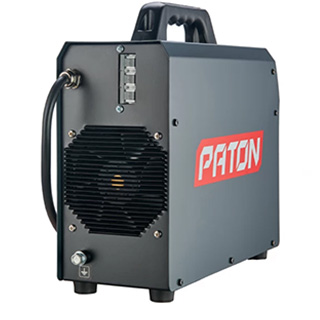

Housing It has a sturdy metal housing with dimensions of 390х145х335 mm. Weight: 9.8 kg. |
|
Voltage The inverter operates reliably with a voltage range 380/400 V. It is equipped with protection against voltage fluctuations. Nominal power consumption: 11700 W. Maximum power consumption: 15200 W. |
|

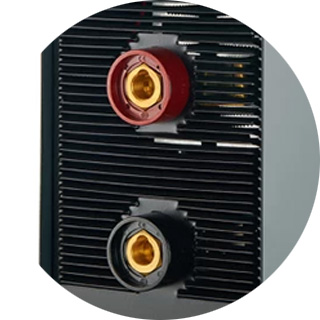

Power connectors The housings of the power connectors are made of heat-resistant material. |
|

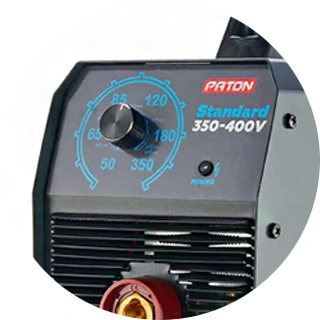

Current adjustment Smooth welding current adjustment from 50 A to 350 A. |
|
Electrodes Any electrodes with a diameter from 2 mm to 6 mm can be used. |
|

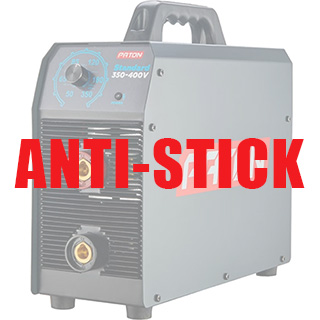

Function "ANTI-STICK" During the initial arc strike, the electrode may stick or adhere to the workpiece, which can lead to overheating and excessive heat, potentially damaging the electrode. If the electrode sticks to the workpiece, the device reduces the welding current within 0.6 to 0.8 seconds. This makes it easier for the welder to detach the electrode from the workpiece without the risk of eye injury from an accidental arc strike. Once the electrode is detached from the workpiece, the welding process can continue uninterrupted. |
|

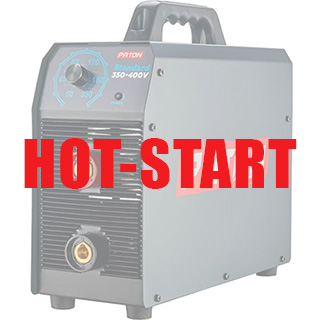

Function "HOT-START" The "HOT-START" function improves ignition even when using electrodes that are difficult to ignite. It also helps to achieve better penetration of the base material during ignition, resulting in fewer cold welds. Additionally, it prevents the formation of slag inclusions. |
|

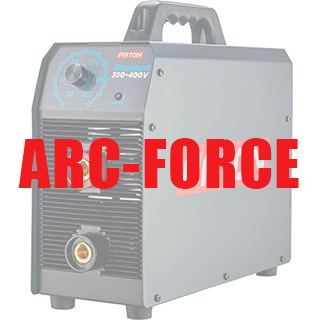

Function "ARC-FORCE" The "ARC-FORCE" function enhances the stability of welding on a short arc, improves the transfer of metal droplets into the weld pool, improves arc ignition, and reduces the likelihood of electrode sticking. |
|
Сopper cables The package includes a 3-meter copper cable with an electrode holder Abicor Binzel DE2300 and a 3-meter copper cable with a "ground" clamp Abicor Binzel MK300. |
Complete set:
- welding inverter;
- shoulder belt;
- copper cable (3 m) with electrode holder Abicor Binzel DE2300;
- copper cable (3 m) with "ground" clamp Abicor Binzel MK300;
- instruction;
- warranty card;
- branded corrugated box PATON™.
6 reasons to buy welding inverter Paton Standard-350-400V 350 А 2-6 mm (1013035012)
- Powerful welding inverter.
- For manual arc welding (MMA).
- The inverter operates reliably on a 380/400 V power supply.
- Operates at a nominal current of up to 350 A.
- Smooth welding current adjustment.
- JOHN STALEVAR is an official dealer of TM Paton.
