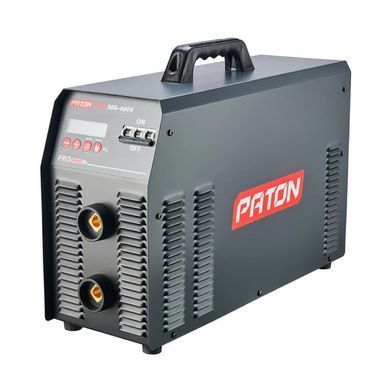

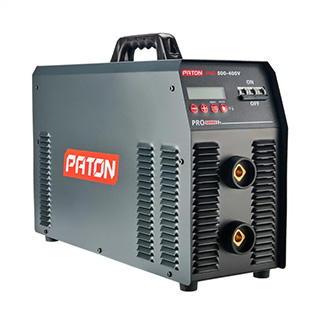

Welding inverter Paton PRO-500-400V 500 А 1.6-8 mm (1014050012)
Welding inverter Paton PRO-500-400V 500 А 1.6-8 mm (1014050012) is an industrial machine designed for manual arc welding (MMA), tungsten inert gas welding (TIG), and semi-automatic welding (MIG/MAG) in protective gases and mixtures. The advantages of the PRO-500-400V device lie in its fully digital control system. The LCD display makes it easy to adjust the device for any task. The "Professional" series of welding machines is designed for industrial use, with the capability for additional adjustments. It supports continuous duty cycle at the rated current of up to 500 A, allowing the use of electrodes with diameters ranging from 1.6 mm to 8 mm (including refractory ones), and also supports semi-automatic welding with solid wire up to 1.6 mm in diameter. The built-in idle voltage reduction block in MMA mode ensures safe operation in challenging conditions, while the voltage protection block enhances the reliability of the machine by safeguarding against low voltage and brief high voltage conditions. Included with the PRO-500-400V are accessories from the German manufacturer ABICOR BINZEL.
Features:
|
Housing It has a sturdy metal housing with dimensions of 510х180х385 mm. Weight: 21.7 kg. |
|

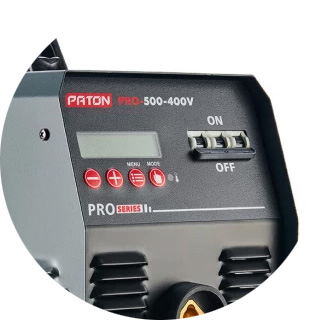

Display The LCD display makes it easy to adjust the device for any task. |
|
Work stabilization system Stabilization system for operation during significant long-term voltage fluctuations in the power supply network ranging. |
|
Power Nominal power consumption: 19800-23500 W. Maximum power consumption: 28900 W. |
|
Power connectors The housings of the power connectors are made of heat-resistant material. |
|
Current adjustment Welding current adjustment from 16 A to 500 A. |
|
Electrodes Any electrodes with a diameter from 1.6 mm to 8 mm can be used. |
|
Welding modes The inverter is designed for manual arc welding (MMA), tungsten inert gas welding (TIG), and semi-automatic welding (MIG/MAG) in protective gases and mixtures. |
|
Function "ANTI-STICK" During the initial arc strike, the electrode may stick or adhere to the workpiece, which can lead to overheating and excessive heat, potentially damaging the electrode. If the electrode sticks to the workpiece, the device reduces the welding current within 0.6 to 0.8 seconds. This makes it easier for the welder to detach the electrode from the workpiece without the risk of eye injury from an accidental arc strike. Once the electrode is detached from the workpiece, the welding process can continue uninterrupted. |
|
Function "HOT-START" The "HOT-START" function improves ignition even when using electrodes that are difficult to ignite. It also helps to achieve better penetration of the base material during ignition, resulting in fewer cold welds. Additionally, it prevents the formation of slag inclusions. It features manual adjustment. |
|
Function "ARC-FORCE" The "ARC-FORCE" function enhances the stability of welding on a short arc, improves the transfer of metal droplets into the weld pool, improves arc ignition, and reduces the likelihood of electrode sticking. It features manual adjustment. |
|
Function idle voltage reduction When performing welding work in containers, tanks, and where enhanced electrical safety is required, the idle voltage reduction function can be activated. When the electrode is detached from the workpiece, the voltage at the terminals of the power source is reduced to a safe level below 12 V within 0.1 seconds. |
Complete set:
- welding inverter;
- copper cable (5 m) with electrode holder Abicor Binzel DE2500;
- copper cable (5 m) with "ground" clamp Abicor Binzel;
- instruction;
- warranty card;
- PATON™ branded corrugated cardboard box.
6 reasons to buy welding inverter Paton PRO-500-400V 500 А 1.6-8 mm (1014050012)
- Powerful welding inverter.
- For manual arc welding (MMA), tungsten inert gas welding (TIG), and semi-automatic welding (MIG/MAG).
- For semi-automatic welding with solid wire up to 1.6 mm in diameter.
- Works with any electrodes ranging from 1.6 mm to 8 mm in diameter.
- Smooth current adjustment from 16 A to 500 A.
