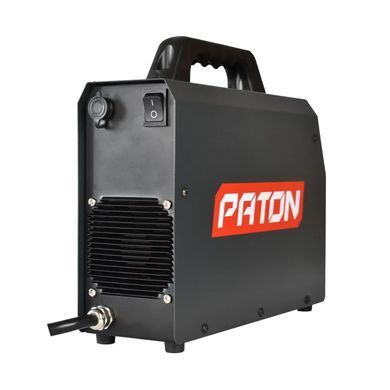

Welding inverter Paton PRO-200 D 200 А 1.6-5 mm (1014020013)
Welding inverter Paton PRO-200 D 200 А 1.6-5 mm (1014020013) is a professional device designed for manual arc welding (MMA), tungsten inert gas welding (TIG), and semi-automatic welding (MIG/MAG) in protective gases and mixtures. It features fully digital control with an enlarged LED display and encoder for easier adjustments. This welding machine is specifically engineered for industrial use and offers additional settings. It supports continuous duty cycle at the rated current of up to 200 A, allowing the use of electrodes with diameters ranging from 1.6 mm to 5 mm, and also supports semi-automatic welding with solid wire up to 1 mm in diameter. The built-in idle voltage reduction block in MMA mode ensures safe operation in challenging conditions, while the voltage protection block enhances the reliability of the machine by safeguarding against low voltage and brief high voltage conditions. Included with the PATON PRO-200 D are accessories from the German manufacturer ABICOR BINZEL, as well as a durable case for comfortable and secure transportation.
Features:
|
Housing It has a sturdy metal housing with dimensions of 115х345х290 mm. Weight: 5.8 kg. |
|
Display It has an enlarged LED display for more convenient adjustment of the inverter. |
|
Work stabilization system Stabilization system for operation during significant long-term voltage fluctuations in the power supply network ranging from 160 V to 260 V. |
|
Power Nominal power consumption: 5000-6000 W. Maximum power consumption: 7400 W. |
|
Power connectors The housings of the power connectors are made of heat-resistant material. |
|
Current adjustment Smooth welding current adjustment from 10 A to 200 A. |
|
Electrodes Any electrodes with a diameter from 1.6 mm to 5 mm can be used. |
|
Welding modes The inverter is designed for manual arc welding (MMA), tungsten inert gas welding (TIG), and semi-automatic welding (MIG/MAG) in protective gases and mixtures. |
|
Function "ANTI-STICK" During the initial arc strike, the electrode may stick or adhere to the workpiece, which can lead to overheating and excessive heat, potentially damaging the electrode. If the electrode sticks to the workpiece, the device reduces the welding current within 0.6 to 0.8 seconds. This makes it easier for the welder to detach the electrode from the workpiece without the risk of eye injury from an accidental arc strike. Once the electrode is detached from the workpiece, the welding process can continue uninterrupted. |
|
Function "HOT-START" The "HOT-START" function improves ignition even when using electrodes that are difficult to ignite. It also helps to achieve better penetration of the base material during ignition, resulting in fewer cold welds. Additionally, it prevents the formation of slag inclusions. It features manual adjustment. |
|
Function "ARC-FORCE" The "ARC-FORCE" function enhances the stability of welding on a short arc, improves the transfer of metal droplets into the weld pool, improves arc ignition, and reduces the likelihood of electrode sticking. It features manual adjustment. |
|
Function idle voltage reduction When performing welding work in containers, tanks, and where enhanced electrical safety is required, the idle voltage reduction function can be activated. When the electrode is detached from the workpiece, the voltage at the terminals of the power source is reduced to a safe level below 12 V within 0.1 seconds. |
|
Plastic case and copper cables The inverter is supplied with a plastic case for convenient transportation and storage, as well as with a 3-meter copper cable with an electrode holder Abicor Binzel DE2200 and a 3-meter copper cable with a "ground" clamp Abicor Binzel MK300. |
Complete set:
- welding inverter;
- shoulder belt;
- copper cable (3 m) with electrode holder Abicor Binzel DE2200;
- copper cable (3 m) with "ground" clamp Abicor Binzel MK300;
- instruction;
- warranty card;
- branded сase PATON.
6 reasons to buy welding inverter Paton PRO-200 D 200 А 1.6-5 mm (1014020013)
- Powerful welding inverter.
- For manual arc welding (MMA), tungsten inert gas welding (TIG), and semi-automatic welding (MIG/MAG).
- For semi-automatic welding with solid wire up to 1 mm in diameter.
- Works with any electrodes ranging from 1.6 mm to 5 mm in diameter.
- Smooth current adjustment from 10 A to 200 A.
- JOHN STALEVAR is an official dealer of TM Paton.
