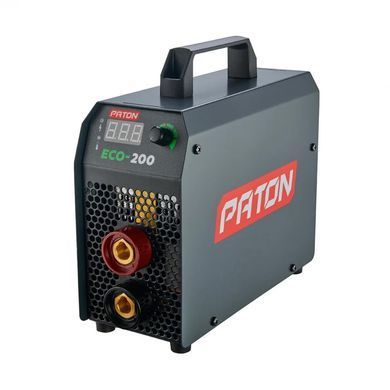

Welding inverter Paton ECO-200 200 А 1.6-5 mm (1012020013)
Welding inverter Paton ECO-200 200 А 1.6-5 mm (1012020013) is designed for manual arc welding (MMA) with direct current. This compact device effectively handles a range of tasks and meets the needs of even experienced users. It supports electrodes with diameters from 1.6 mm to 5 mm, including high-melting electrodes, with a nominal current up to 200 A. The duty cycle is at least 40%, making it suitable for both home use and workshops for metal construction assembly and small-scale building projects. The PATON ECO-200 features built-in under-voltage protection, enhancing its reliability. Thanks to the increased frequency of the voltage supplied to the transformer, this device is significantly smaller in size compared to traditional models, providing convenience and ease of use.
Features:
|
Housing It has a sturdy metal housing with dimensions of 100х270х240 mm. Weight: 4 kg. |
|
Power cord A power cord of Ukrainian manufacture, maintaining flexibility across a wide temperature range, with a reliable plug that ensures dependable power supply to the device in any situation. The special coupling provides secure and safe attachment of the cable to the device. |
|
Voltage The inverter operates reliably with a voltage range from 170 V to 260 V. It is equipped with protection against voltage fluctuations. Nominal power consumption: 5500 W. Maximum power consumption: 6900 W. |
|
Power connectors The housings of the power connectors are made of heat-resistant material. |
|
Current adjustment Smooth welding current adjustment from 25 A to 200 A. |
|
Electrodes Any electrodes with a diameter from 1.6 mm to 5 mm can be used. |
|
Function "ANTI-STICK" During the initial arc strike, the electrode may stick or adhere to the workpiece, which can lead to overheating and excessive heat, potentially damaging the electrode. If the electrode sticks to the workpiece, the device reduces the welding current within 0.6 to 0.8 seconds. This makes it easier for the welder to detach the electrode from the workpiece without the risk of eye injury from an accidental arc strike. Once the electrode is detached from the workpiece, the welding process can continue uninterrupted. |
|
Function "HOT-START" The "HOT-START" function improves ignition even when using electrodes that are difficult to ignite. It also helps to achieve better penetration of the base material during ignition, resulting in fewer cold welds. Additionally, it prevents the formation of slag inclusions. |
|
Function "ARC-FORCE" The "ARC-FORCE" function enhances the stability of welding on a short arc, improves the transfer of metal droplets into the weld pool, improves arc ignition, and reduces the likelihood of electrode sticking. |
|

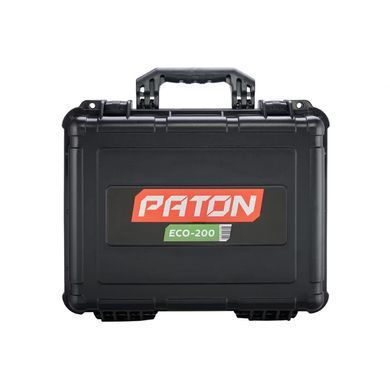

Plastic case and copper cables It comes in a plastic case for convenient storage and transportation. The package also includes a 3-meter copper cable with an electrode holder Abicor Binzel DE2200 and a 3-meter copper cable with a "ground" clamp Abicor Binzel MK300. |

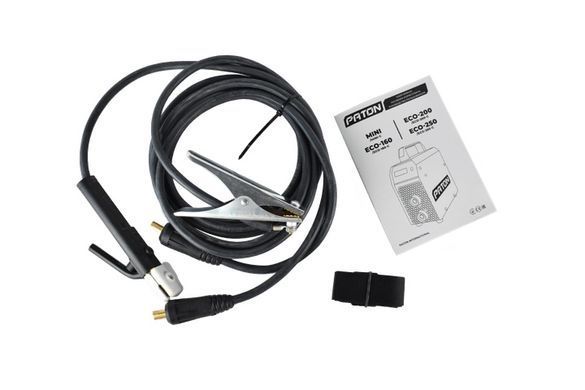

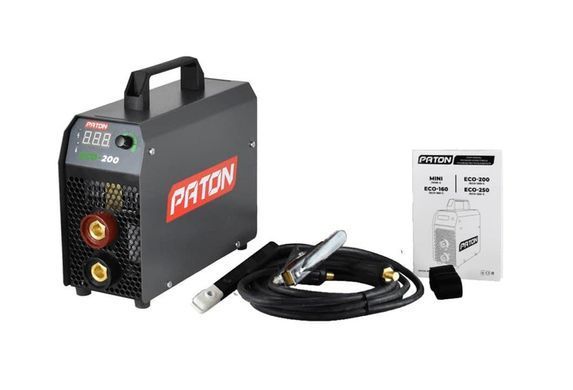

Complete set:
- welding inverter;
- shoulder belt;
- copper cable (3 m) with electrode holder Abicor Binzel DE2200;
- copper cable (3 m) with "ground" clamp Abicor Binzel MK300;
- instruction;
- warranty card;
- branded case PATON™.
6 reasons to buy welding inverter Paton ECO-200 200 А 1.6-5 mm (1012020013)
- Compact welding inverter.
- For manual arc welding (MMA).
- A stabilization system for operation under prolonged voltage fluctuations ranging from 170 V to 260 V.
- Operates at a nominal current of up to 200 A.
- Smooth welding current adjustment.
- JOHN STALEVAR is an official dealer of TM Paton.
